2xN RJ45 Jack w/o Transformer Connectors

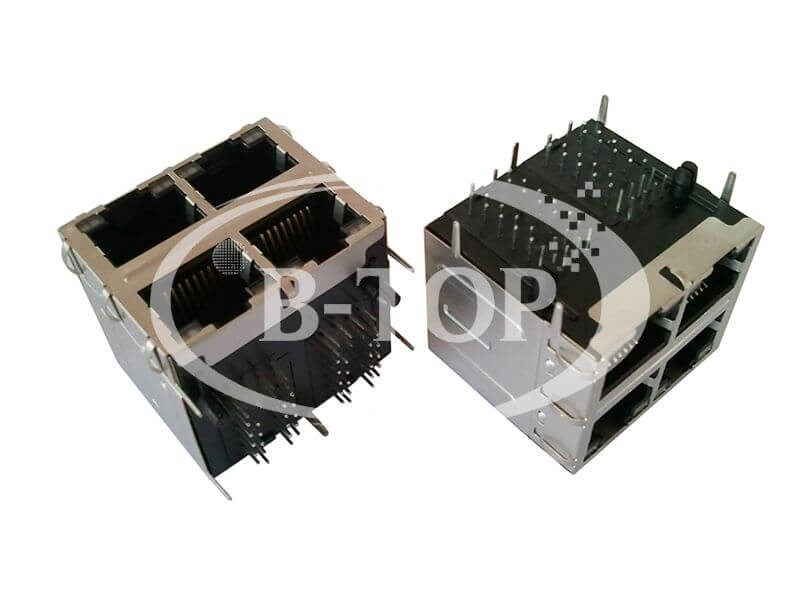

These 2xN stacked rj45 jack w/o transformer connectors have the same pinout with the modular magnetic rj45 jack connectors. Consequently, it could be helpful for your design.
Features and Benefits
- Same pinout with the modular magnetic rj45 jack connectors (Mech drawing A)
- RoHS peak wave solder temperature rating 260°C
- Suitable for CAT5, 6 UTP cable or better
- 350µH minimum OCL with 8mA bias current
- High performance for maximum EMI suppression
- LEDs are avaialbe in a variety of colors
Product List
| Part Number | Ports | LEDs | EMI Spring | Gold Plating | Temperature | Download | Note |
|---|---|---|---|---|---|---|---|
| B59(47-01)W-1022-C12 | 2x1 | None | Yes | 6u" | 0 - 70 | ||
| B59(48-27)W-1123-C12 | 2x1 | Y/G | Yes | 6u" | 0 - 70 | ||
| B59(57-09)W-1212-C12 | 2x1 | Y/G | No | 6u" | 0 - 70 | ||
| B59(57-17)W-1613-C12 | 2x1 | G/A | No | 6u" | 0 - 70 | ||
| B59(57-06)W-1623-C12 | 2x1 | G/GO | Yes | 6u" | 0 - 70 | ||
| B59(57-07)W-1222-C12 | 2x1 | G/Y | Yes | 6u" | 0 - 70 | ||
| B59(57-01)W-1122-C12 | 2x1 | Y/G | Yes | 6u" | 0 - 70 | ||
| B59(57-02)W-1622-C12 | 2x1 | GY/GY | Yes | 6u" | 0 - 70 | ||
| B59(57-03)W-1622-C12 | 2x1 | GO/Y | Yes | 6u" | 0 - 70 |
| |
| B59(57-05)W-1624-C12 | 2x1 | GO/Y | Yes | 15u" | 0 - 70 | ||
| B59(57-08)W-1623-C12 | 2x1 | G/GY | Yes | 6u" | 0 - 70 |
| |
| B59(57-18)W-1013-C12 | 2x1 | None | No | 6u" | 0 - 70 | ||
| B59(311-01)W-2623-C12 | 2x2 | GY/GY | Yes | 6u" | 0 - 70 |
| |
| B59(311-03)W-2222-C12 | 2x2 | G/Y | Yes | 6u" | 0 - 70 | ||
| B59(311-21)W-2022-C12 | 2x2 | None | Yes | 6u" | 0 - 70 | ||
| B59(312-02)W-2223-C12 | 2x2 | G/Y | Yes | 6u" | 0 - 70 | ||
| B59(111-02)W-4223-C12 | 2x4 | G/Y | Yes | 6u" | 0 - 70 |
| |
| B59(111-03)W-4222-C12 | 2x4 | G/Y | Yes | 6u" | 0 - 70 |
| |
| B59(111-18)W-000-4623-C12 | 2x4 | GY/GY | Yes | 6u" | 0 - 70 | ||
| B59(112-15)W-4625-C12 | 2x4 | GO/GO | Yes | 30u" | 0 - 70 |
| |
| B59(163-01)W-6022-C12 | 2x6 | None | Yes | 6u" | 0 - 70 | ||
| B59(166-01)W-6123-C12 | 2x6 | Y/G | Yes | 6u" | 0 - 70 | ||
| B59(168-01)W-6725-C12 | 2x6 | GO/GO | Yes | 6u" | 0 - 70 | ||
| B59(168-24)W-000-6113-C12 | 2x6 | Y/G | No | 6u" | 0 - 70 | ||
| B60(181-03)W-6722-C12 | 2x6 | G/Y | Yes | 6u" | 0 - 70 | ||
| B60(181-05)W-6722-C12 | 2x6 | G/G | Yes | 6u" | 0 - 70 | ||
| B59(190-10)W-8223-C12 | 2x8 | G/Y | Yes | 6u" | 0 - 70 | ||
| B59(190-12)W-8122-C12 | 2x8 | Y/G | Yes | 6u" | 0 - 70 | ||
| B59(190-13)W-8622-C12 | 2x8 | GY/GY | Yes | 6u" | 0 - 70 | ||
| B59(190-18)W-8223-C92 | 2x8 | G/Y | Yes | 6u" | 0 - 70 | LCP | |
| B59(192-01)W-8023-C12 | 2x8 | None | Yes | 6u" | 0 - 70 | ||
| B59(196-01)W-8223-C12 | 2x8 | G/Y | Yes | 6u" | 0 - 70 | ||
| B59(173-02)W-6122-C12 | 2x6 | Y/G | Yes | 6u" | 0 - 70 | ||
| B59(173-03)W-6622-C12 | 2x6 | GY/GY | Yes | 6u" | 0 - 70 | ||
| B59(173-05)W-6222-C12 | 2x6 | G/Y | Yes | 6u" | 0 - 70 |
| |
| B59(173-07)W-6322-C12 | 2x6 | G/G | Yes | 6u" | 0 - 70 | ||
| B59(197-01)W-000-8625-C12 | 2x8 | GY/GY | Yes | 30u" | 0 - 70 |
| |
| B59(197-02)W-000-8213-C12 | 2x8 | G/Y | No | 6u" | 0 - 70 |
